Three Stage Sorter

Download eBrochure

TEA SORTING EXPERT WITH HIGH COST-EFFECTIVENESS

  • Three-stage Structure Design Ensures high quality of final tea accepts
  • One-key Double Intelligent Algorithm Provides obvious color difference sorting and the nuance of color sorting
  • Outstanding Output High-frequency feeding system, provides steady feeding and large input without adhesion
  • Strong Shape Sorting Ability
  • Intelligent Anti-Shattering Equipped with soft material protection cushion, lower breakage
  • Highly Reliable, More Intelligent Standardized and modular design, built by the Intelligent Factory

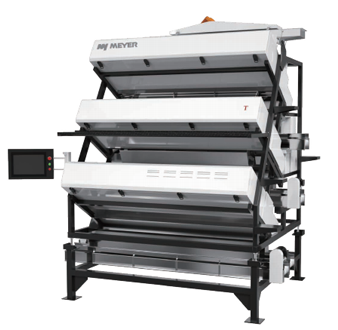

Three Stage Sorter

The product is equipped with Ultra HD imaging system, one-key double intelligence algorithm, targeted removal and other AI algorithms.It can separate tea accepts from yellow leaves, tea stalk, tea seeds and other impurities. It features rich tea sorting solutions to meet various demands.


Name Model Power(KW) Voltage(V) Air pressure(MPa) Air Consumption(m³/min) Dimension(L*W*H)(mm) Weight(kg)
TD-S 6CSX-300 IIIB 6.0 340-420 0.6~0.8 <6.5 3094X2812X4054 4800
1200TD2 6CSX-1200TD2 6.0 340-420 0.6~0.8 <6.5 3350X2820X4220 4000
