Four Stage Sorter

Download eBrochure

GET TEA ACCEPTS, STALKS, LEAVES AT A TIME

  • Four-stage Structure Design gets tea accepts, leaves and stalks easily at a time
  • One-key Double Intelligent Algorithm Provides obvious color difference sorting and the nuance of color sorting
  • Outstanding Output High-frequency feeding system, provides steady feeding and large input without adhesion
  • Low loss
  • Strong Shape Sorting Ability
  • Intelligent Anti-Shattering Equipped with soft material protection cushion, lower breakage
  • Highly Reliable, More Intelligent Standardized and modular design, built by the Intelligent Factory

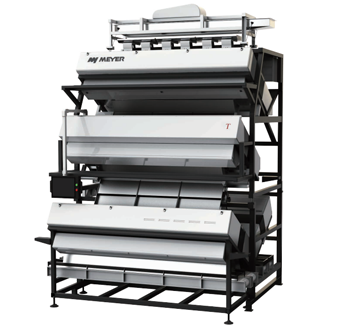

Four Stage Sorter

The product is equipped with Ultra HD imaging system, one-key double intelligence algorithm, targeted removal and other AI algorithms.It can separate tea accepts from yellow leaves, tea stalk, tea seeds and other impurities. It features a high cleaning rate, quite low consumption, stable function and cost-effective price.


Name Model Power(KW) Voltage(V) Air pressure(MPa) Air Consumption(m³/min) Dimension(L*W*H)(mm) Weight(kg)
TD-S 6CSX-300 IIIB 6.0 340-420 0.6~0.8 <6.5 3094X2812X4054 4800
1200TD2 6CSX-1200TD2 6.0 340-420 0.6~0.8 <6.5 3350X2820X4220 4000
