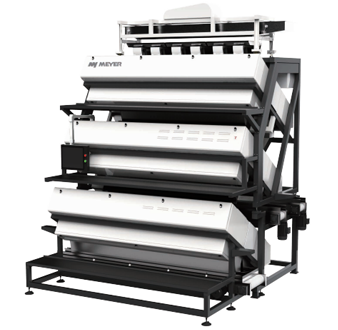

Three Stage Infrared Sorter

Download eBrochure

WITH NIR INFRARED TECH,REMOVE ALL IMPURITIES

  • NIR Infrared Technology Precisely detects and removes dead insects, plastics, butt, sawdust and other impurities
  • One-key Double Intelligent Algorithm Provides obvious color difference sorting and the nuance of color sorting
  • Outstanding Output High-frequency feeding system, provides steady feeding and large input without adhesion
  • Strong Shape Sorting Ability
  • Intelligent Anti-Shattering Equipped with soft material protection cushion, lower breakage
  • Highly Reliable, More Intelligent Standardized and modular design, built by the Intelligent Factory

Three Stage Sorter

The product is equipped with Ultra HD imaging system, one-key double intelligence algorithm, targeted removal and other AI algorithms.It can separate tea accepts from yellow leaves, tea stalk, tea seeds and other impurities. It features rich tea sorting solutions to meet various demands.


Name Model Power(KW) Voltage(V) Air pressure(MPa) Air Consumption(m³/min) Dimension(L*W*H)(mm) Weight(kg)
TF 6CSX-900TF 6.0 340-420 0.6~0.8 <5.4 2750X2850X3860 4000
